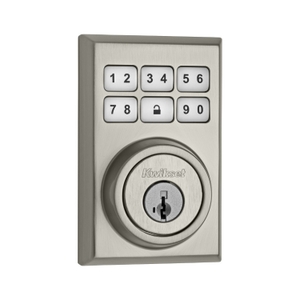

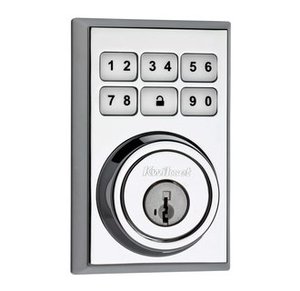

Contemporary Motorized Z-Wave Deadbolt

2GIG Edge Security and Automation Panel

SKU # 2GIG-EDG-NA-VA

Panel Features

• Face recognition disarm
• Bluetooth disarm
• Glass break detection with advanced audio analytics
• Video live view on the panel
• Alarm.com cameras on the panel
• Doorbell on the panel with 2-way audio and door unlock
• ONVIF camera support
• Photo capture while viewing on a 7″ LCD – RGB: 16.7 million colors
• Data privacy
• 2GIG secure 6-digit personal codes

Security

• One-touch arming
• eSeries encrypted sensors
• Emergency (fire, medical, police)
• 100 users
• 100 wireless zones
• 2 wired zones
• Wired bell output
• 32 keyfobs
• 8 keypads
• 2 open collector outputs
• Image sensor 3

Audio

• Best in class 2-way voice
• Dual microphones (digital)
• Noise and echo cancellation
• Front firing speakers
• Siren/piezo
• Annunciations and chimes

Automation

• Integrated Z-Wave Plus V2 (700 series)
• Z-Wave S2
• Create and execute scenes and schedules

Voice Controls

• Google Assistant
• Amazon Echo
• Siri Shortcuts

Communication

• 4G LTE (Verizon and AT&T)
• 3G fall-back
• Wi-Fi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
• Wi-Fi access point

Communication

• 4G LTE (Verizon and AT&T)
• 3G fall-back
• Wi-Fi 2.4 GHz (802.11 b/g/n, WPA-TKIP/WPA2-AES)
• Wi-Fi access point

Operating Specifications

• Operating temperature: 32°F to 104°F (0°C to 40°C) Max humidity 90%
• 100-240VAC 50/60Hz 1.7A 14VDC adapter Lithium-polymer backup battery (24 hrs.)
• Dimensions: 7.5 L x 5.625 W x 1.0 D (in)
• 19.05 L x 14.29 W x 2.54 D (cm)
• Weight: 1.39 lbs | 0.63 kg

Certifications

• FCC: Part 15, Part 68
• ISED, RSS210/RSS247
• UL 985, UL 1023, UL 2017, ULC-S545, ULC S304 (for Canada)
• SIA CP-01
• CSFM BML Listed
• PROP-65, ROHS

Firmware Updates

• Over-the-air
• USB

Package Contents

• Power Supply, Mounting Kit, Quick Install Guide & Regulatory Documentation

Warranty

• Limited 3 years

$350.00
